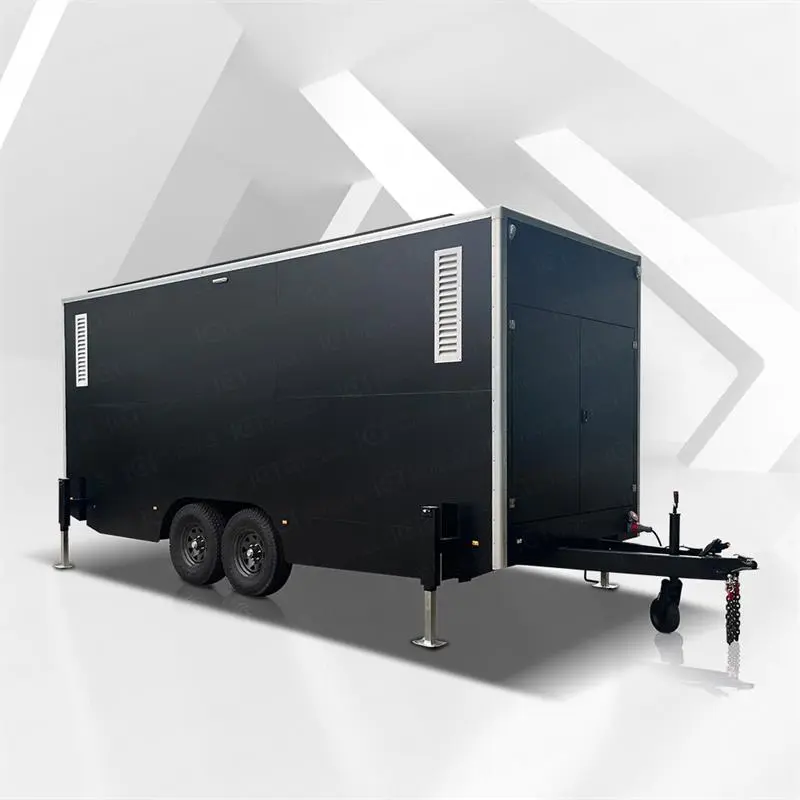

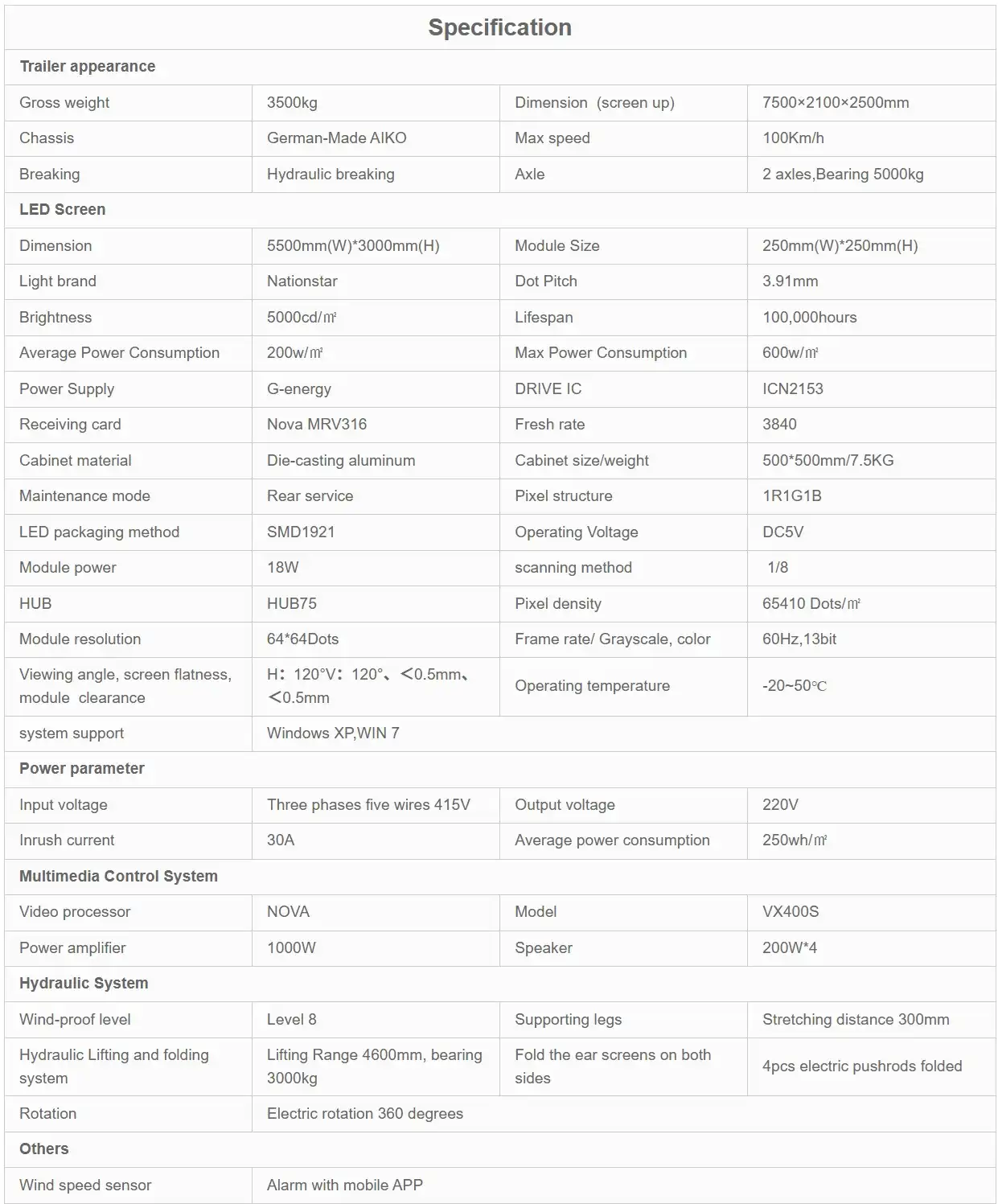

The JCT MBD-16S Enclosed combines stadium-caliber broadcast power with an all-weather, heavy-duty container design. Built inside a fully sealed steel and aluminum box enclosure, this 16 m² mobile LED display unit (5500 mm × 3000 mm) acts as a self-contained command hub on wheels, protecting delicate multimedia hardware during transit while delivering instant visual performance upon arrival.
Key Features & Specifications
- Enclosed All-Weather Box Architecture:
Built within a 7.5 m × 2.1 m × 2.5 m heavy-duty steel and aluminum alloy box enclosure. The weather-resistant housing completely shields the screen, sound system, power amplifiers, and control gear from rain, dust, and transit impacts. - High-Definition 16 m² Folding LED Display:
Utilizes high-brightness Nationstar SMD1921 LED modules in a fine P3.91 pixel pitch, paired with electric pushrod side-ear folding wings that expand into a seamless, high-contrast widescreen display for direct daylight visibility. - Telescopic Hydraulic Lift & 360-Degree Rotation:
Driven by a 3-phase hydraulic lifting mast reaching up to 7.5 meters at screen top, complemented by electric 360-degree screen rotation for effortless crowd targeting across multi-directional venue spaces. - Integrated Sound Station & Internal Power Hub:
Outfitted with a complete internal multimedia suit including high-output audio amplifiers, built-in speakers, internal cabin lighting, charging sockets, and an auxiliary hand-pump system for fail-safe emergency screen lowering. - German Dual-Axle Chassis & Intelligent Monitoring:
Constructed on a hot-dip galvanized chassis adhering to DIN EN 13814 and DIN EN 13782 standards. Features a German AIKO dual-axle setup (5000 kg bearing capacity), hydraulic braking, real-time wind speed sensors, and mobile APP safety alerts.

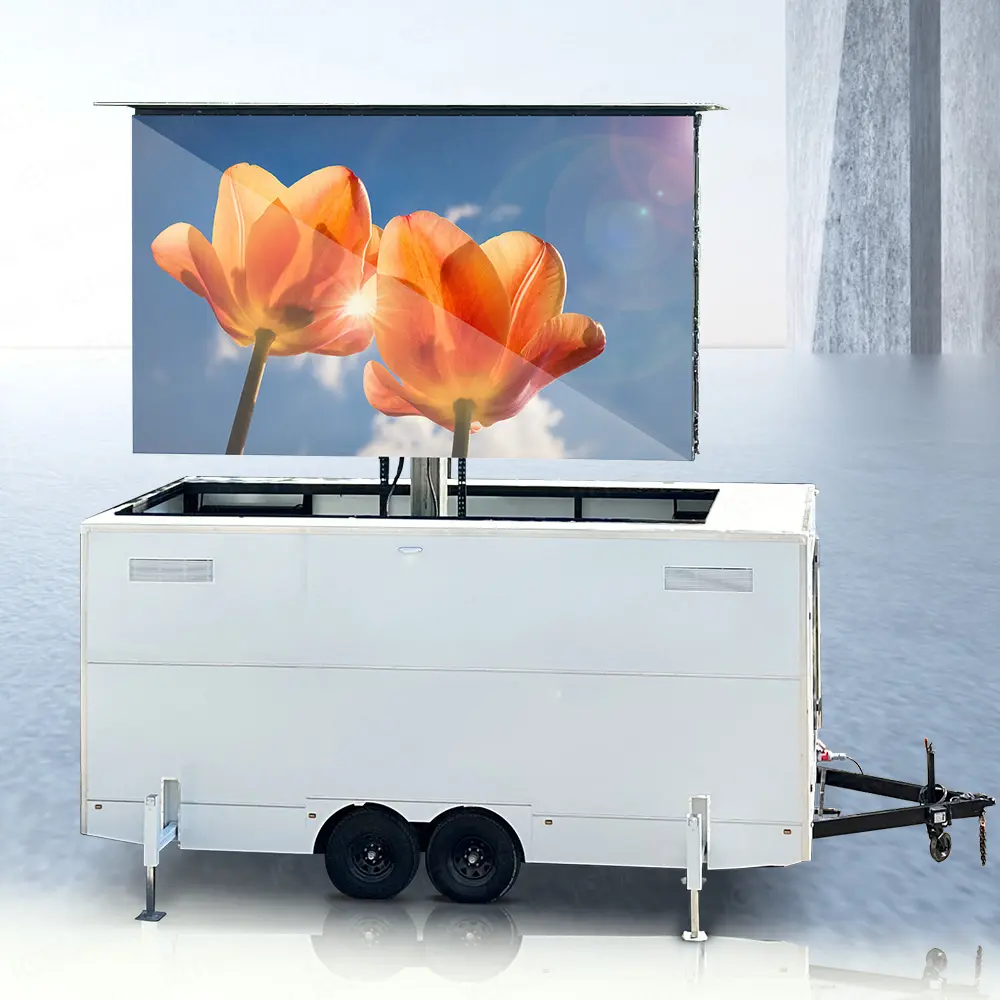

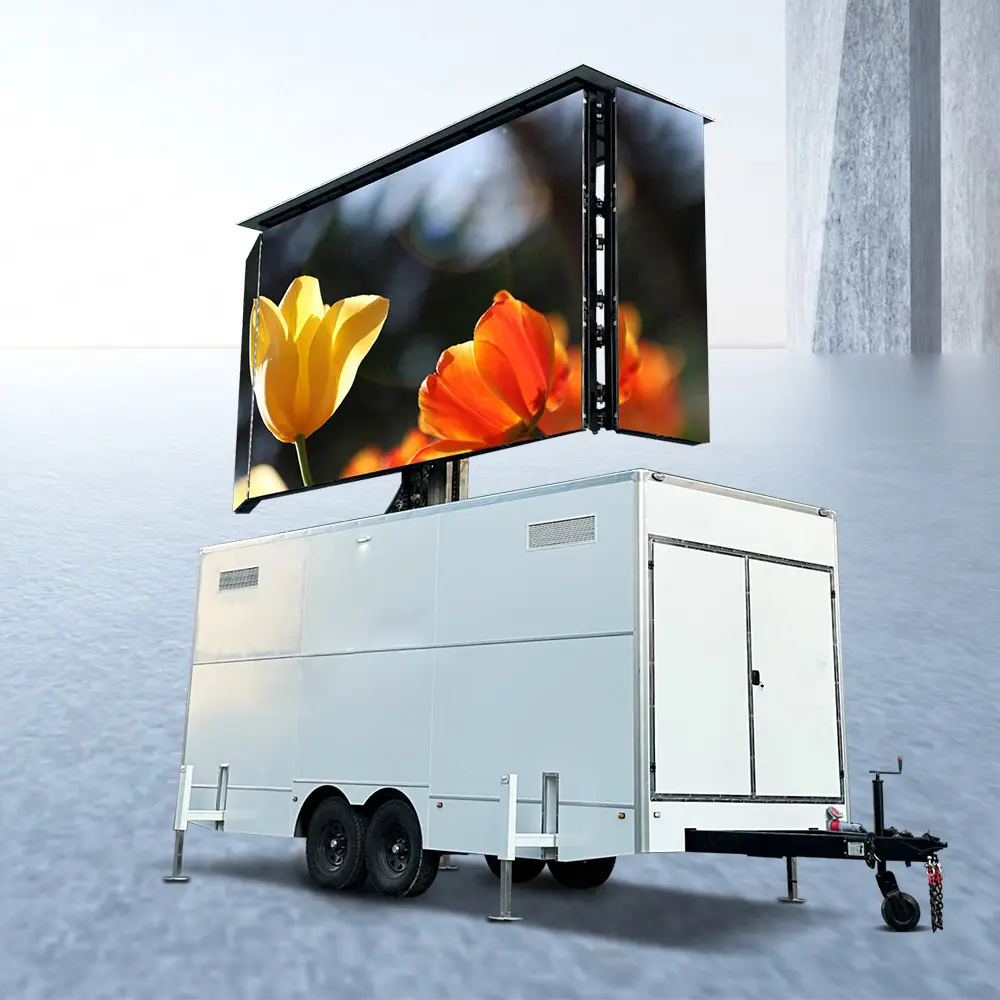

The JCT MBD-21S Enclosed is a heavy-duty, mobile media fortress engineered to transform open venues into high-energy live broadcasting arenas. Built within a fully sealed, weather-resistant box container, this mobile unit conceals a massive 21 m² LED display wall (6000 mm × 3500 mm) that unfolds on demand, protecting internal control hardware during long-distance transport while delivering instant outdoor performance.
Key Features & Specifications
- All-Weather Enclosed Command Hub:
Housed inside a heavy-duty steel and aluminum alloy box enclosure, completely shielding internal media processors, sound amplification rigs, and high-value control gear from rain, dust, and highway debris. - Vivid 21 m² High-Definition Display:
Powered by premium SMD1921 LED modules in a tight P3.91 pixel pitch, delivering deep contrast, a high 3840 Hz refresh rate, and up to 5000 cd/m² daylight-piercing brightness for flicker-free streaming under direct sunlight. - Telescopic Hydraulic Elevation & 360-Degree Command:
Features a multi-stage hydraulic mast that lifts the screen up to a towering 7.5 meters top height, paired with electric 360-degree rotation and motorized side-folding wings for multi-directional crowd coverage. - Automated 15-Minute Remote Deployment:
Fully operational within 15 minutes of site arrival using a single-touch wireless remote control, eliminating complex manual assembly and reducing field crew setup time. - Certified Heavy-Duty Chassis & Safety Architecture:
Built on a hot-dip galvanized dual-axle chassis compliant with DIN EN 13814 and DIN EN 13782 standards. Outfitted with high-capacity hydraulic braking, heavy-duty outriggers engineered for Level 8 wind loads, an integrated wind speed sensor with mobile safety alerts, and a manual emergency hand-pump fallback.

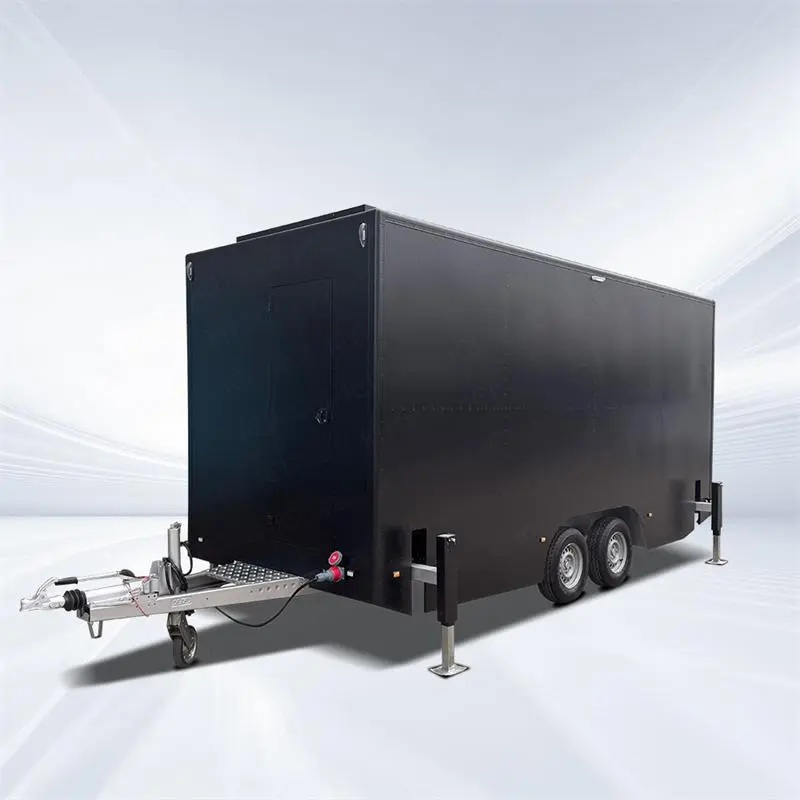

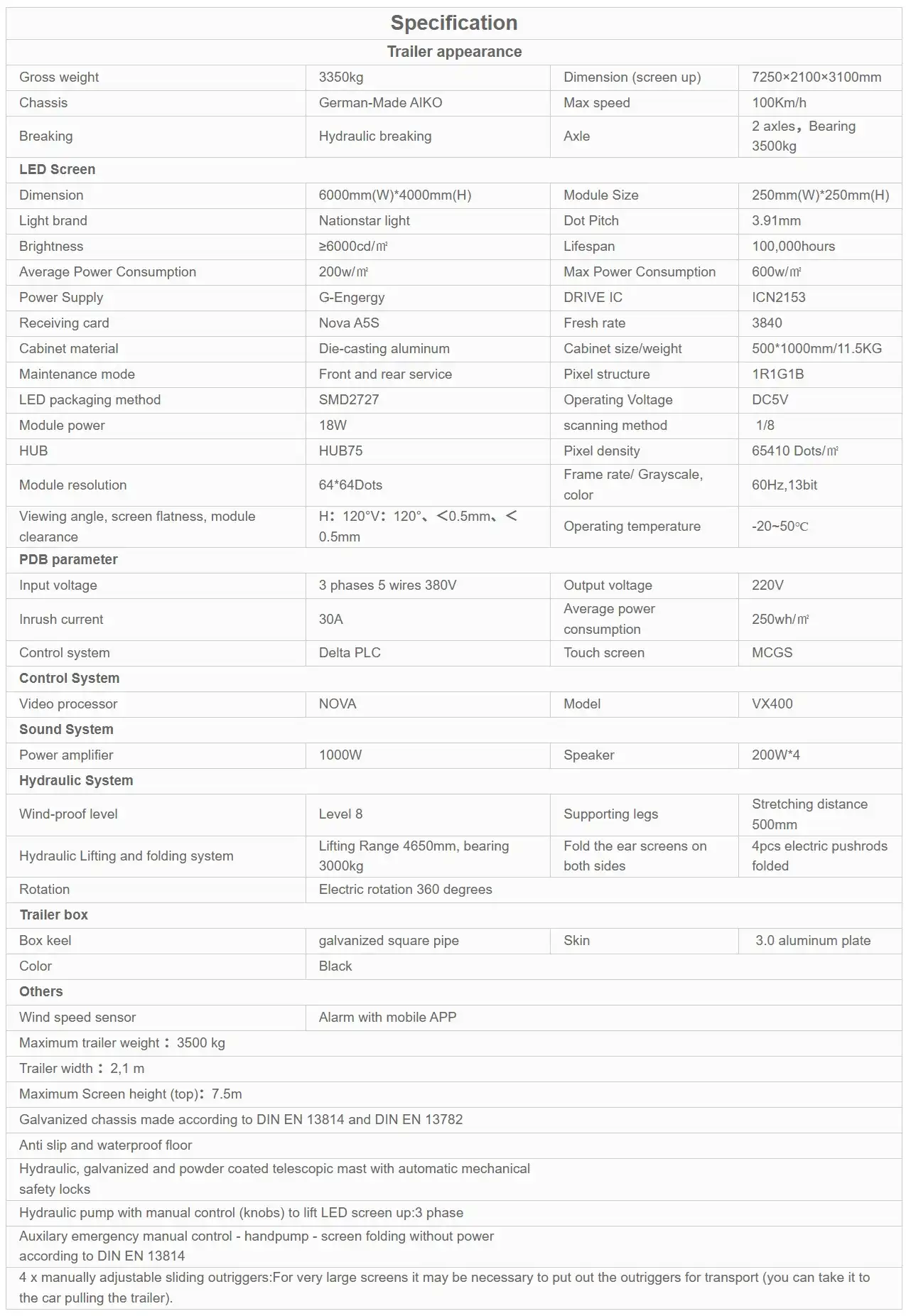

The JCT MBD-24S Enclosed is an all-in-one mobile advertising powerhouse designed to deliver high-impact visual media wherever an audience gathers. Encased within a sleek, protective box chassis, this self-contained broadcast unit houses a massive 24 m² outdoor LED display wall (6000 mm × 4000 mm) along with a fully integrated control studio, shielding critical hardware during long-distance road transit while enabling swift deployment on-site.
Key Features & Specifications
- All-Weather Enclosed Box Architecture:
Designed within a compact 7250 mm × 2150 mm × 3100 mm closed box structure. The reinforced weather-resistant container houses the folded LED screen and an integrated multimedia studio—complete with high-output audio amplifiers, industrial control PCs, internal cabinet lighting, power distribution, and charging ports—protecting high-value electronics from harsh environments, dust, and transit vibration. - High-Impact 24 m² Display Wall:
Features two precision-engineered display sections that open and lock into a seamless 24 m² widescreen display. Built with outdoor-rated LED modules that offer daylight-piercing brightness, high contrast ratio, and high refresh rates to guarantee vibrant, flicker-free playback even under direct sunlight. - Rapid Mobile Deployment:
Engineered for maximum mobility across diverse locations, making it ideal for touring exhibitions, sports broadcasts, city festivals, brand activations, and mobile emergency command posts. Transits easily behind vans, trucks, or towing vehicles to create a pop-up media hub anywhere. - German-Made AIKO Chassis Infrastructure:
Built on a heavy-duty, TUV-certified German AIKO chassis engineered for smooth highway towing up to 100 km/h. Supported by integrated braking systems and heavy-duty outriggers for secure, level operation on variable terrain. - Extreme Environmental Durability:
Features rugged dustproof, waterproof, and shock-resistant construction designed for continuous operational stability across extreme weather conditions, from scorching desert heat to high-humidity coastal zones.

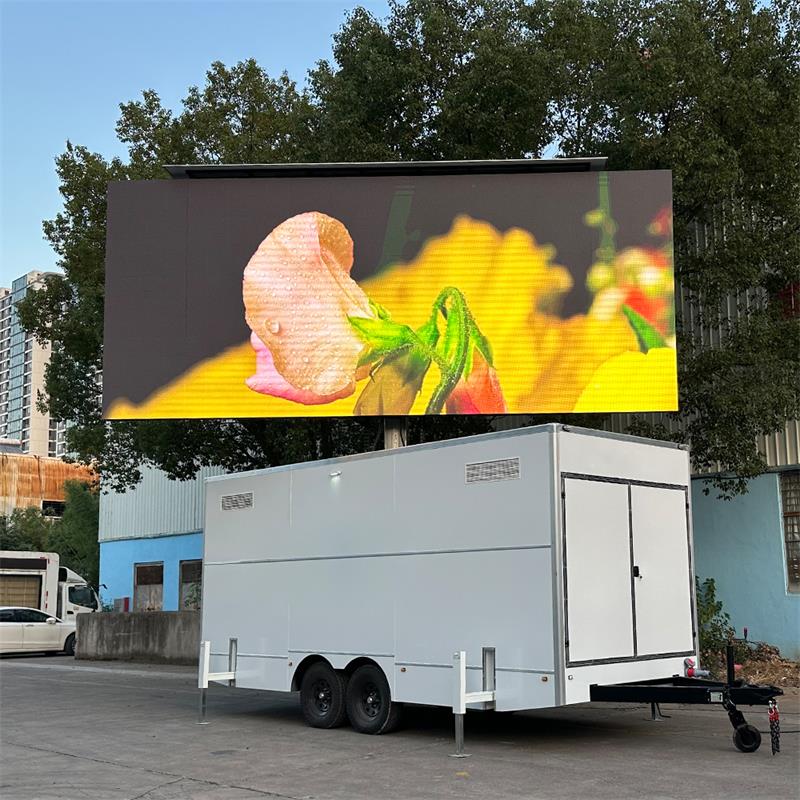

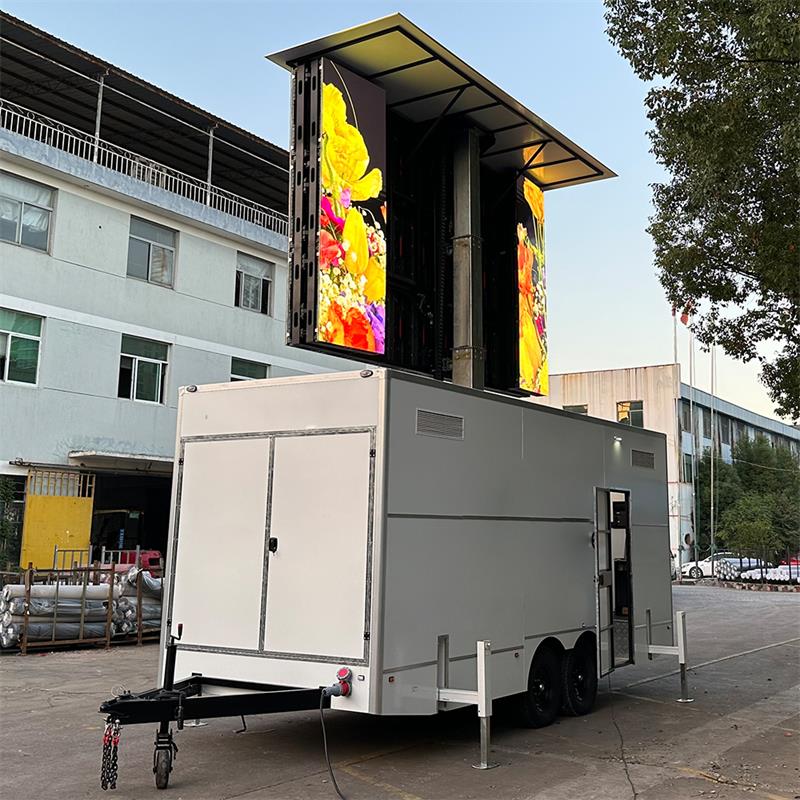

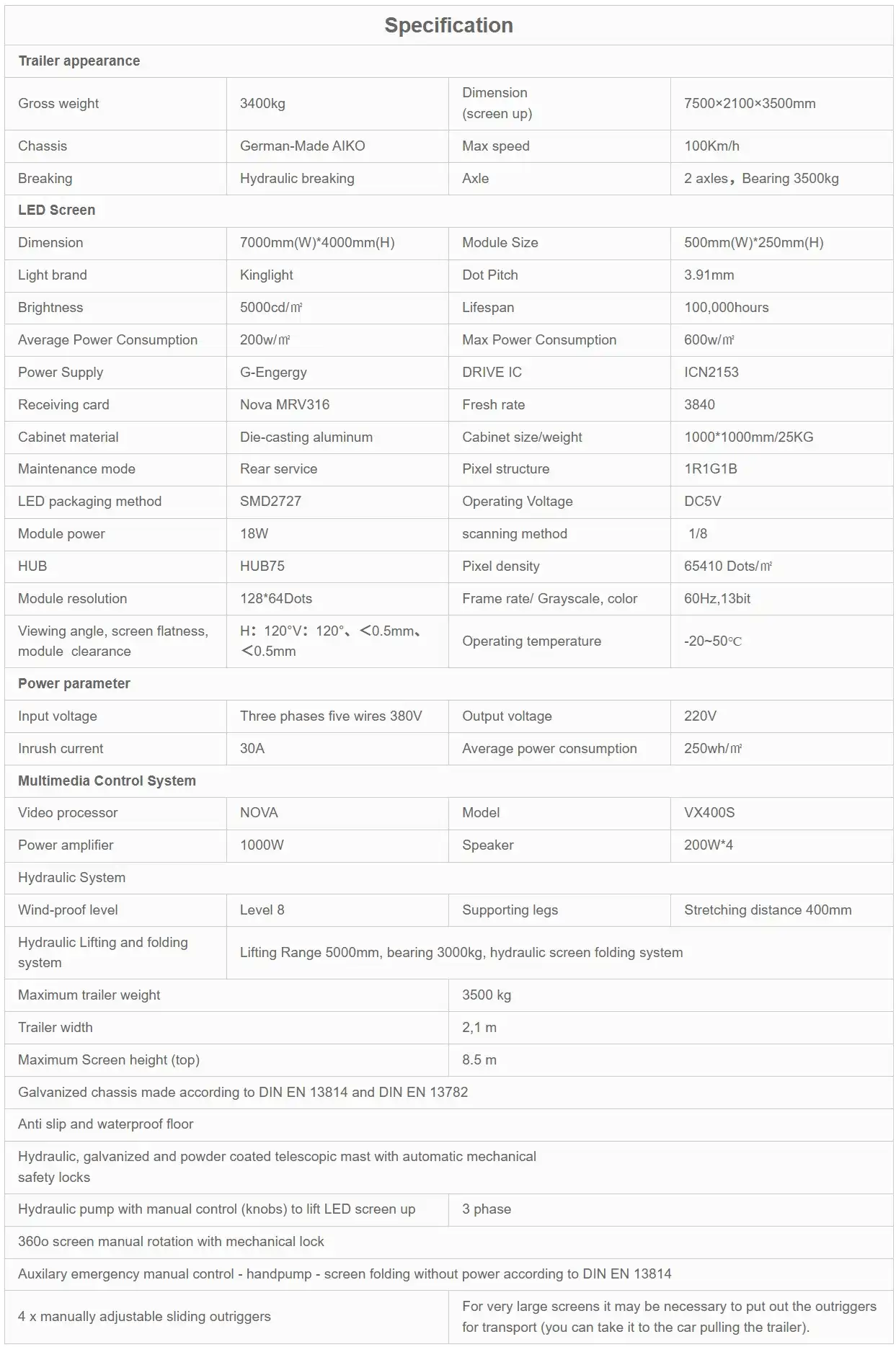

The JCT MBD-28S Enclosed stands as the ultimate mobile media flagship—a colossal, self-contained broadcasting vault engineered to dominate high-capacity stadium venues, fan zones, and major festival grounds. Encased inside a heavy-duty, fully weather-sealed container body, this touring giant conceals a massive 28 m² display wall (7000 mm × 4000 mm) that unfolds on-site to deliver unmissable visual performance across massive outdoor crowds.
Key Features & Specifications
- All-Weather Media Fortress:
Built within an enclosed, heavy-duty steel and aluminum box container that fully protects high-value LED modules, NovaStar video processing racks, high-output audio amplifiers, and power distribution systems from rain, dust, road debris, and harsh environmental wear during transit. - Colossal 28 m² High-Definition Display:
Utilizes outdoor-rated Kinglight SMD2727 LED modules featuring a tight P3.91 pixel pitch, deep dynamic color range, high refresh rate, and up to 5000 cd/m² daylight-piercing brightness for crisp, flicker-free live streaming under direct sunlight. - Hydraulic Elevation & 360-Degree Rotation:
Features an automated, multi-stage hydraulic mast that elevates the screen to a towering 7.5-meter top clearance, paired with electric 360-degree rotation and motorized side-folding wings for complete multi-directional audience coverage. - 15-Minute One-Touch Setup:
Fully operational within 15 minutes of site arrival using a single-touch wireless remote control, minimizing setup labor and eliminating the need for heavy rigging equipment. - German-Certified Dual-Axle Chassis & Safety Monitoring:
Constructed on a hot-dip galvanized chassis manufactured to DIN EN 13814 and DIN EN 13782 standards. Powered by an AIKO dual-axle system (3500 kg bearing capacity), hydraulic brakes, four heavy-duty outriggers rated for Level 8 wind loads, onboard real-time wind speed sensors with mobile APP safety alerts, and a manual emergency lowering system.
