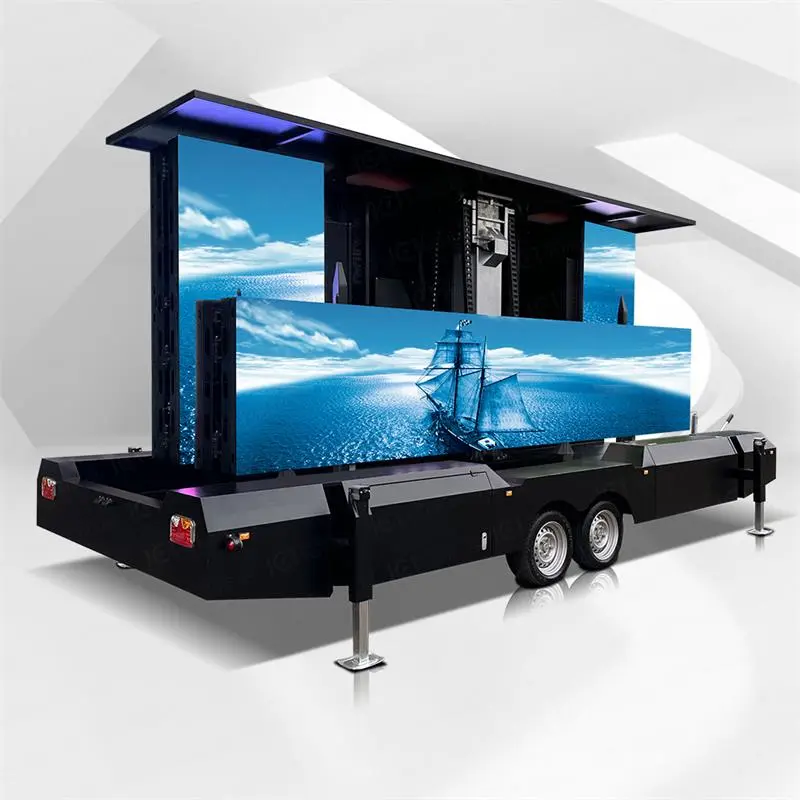

The JCT MBD-21S Platform is an open-bed mobile LED display trailer specifically designed for outdoor advertising, public exhibitions, dynamic stage events, and live sports broadcasts. Featuring a massive 21 m² high-definition LED display screen (7000 mm × 3000 mm) mounted on a flatbed platform, it combines maximum visual impact with rapid field deployment.
Key Features & Specifications
- Expansive 21 m² High-Definition Display:
Built using Nationstar SMD1921 LED lights with a tight P3.91 pixel pitch, delivering sharp video output, high contrast, a 3840 Hz refresh rate, and up to 5000 cd/m² brightness for clear daylight viewing. - Automated 15-Minute Remote Setup:
Utilizes a one-button intelligent remote control system that automates screen elevation, alignment, and locking. The full hydraulic setup can be completely deployed and ready for operation in just 15 minutes. - Advanced Hydraulic Elevation & Rotation:
Powered by a 3-phase hydraulic pump system with a telescopic mast (up to 7.5 m total height from screen top to ground) and 360-degree screen rotation with mechanical locking to target audience positioning precisely. - German-Engineered Chassis & Safety Certification:
Constructed on a hot-dip galvanized chassis manufactured to DIN EN 13814 and DIN EN 13782 standards. Features an AIKO dual-axle system (3500 kg axle rating) suitable for towing speeds up to 100 km/h, backed by an auxiliary manual hand pump for emergency screen lowering without electrical power. - Multi-Signal Media Control:
Driven by NovaStar receiving cards (MRV316) and media processing supporting HDMI, DVI, VGA, and USB inputs, allowing seamless integration with live broadcasting rigs, drone feeds, and promotional media.

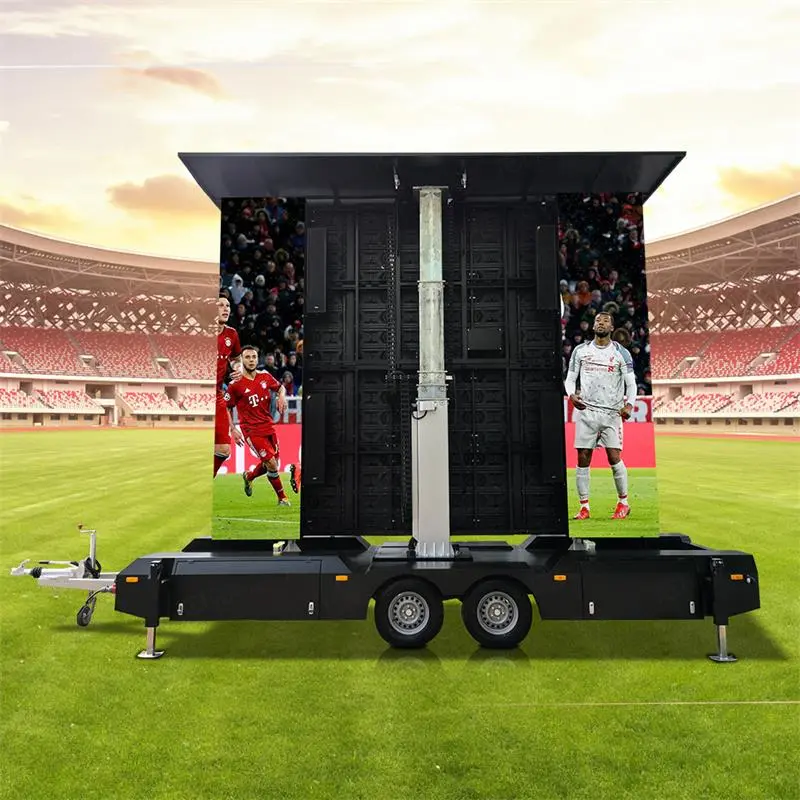

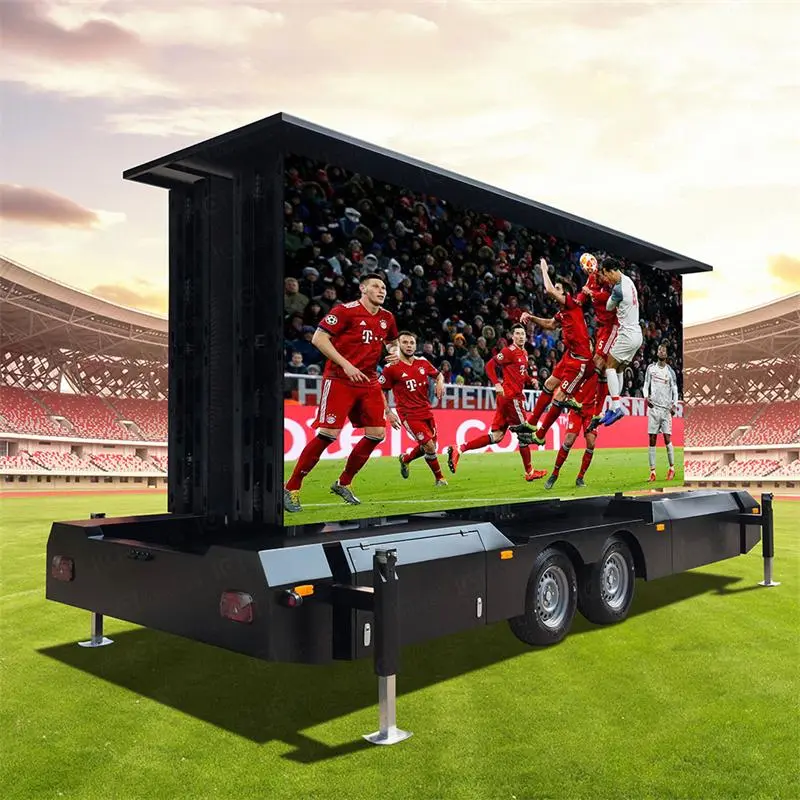

The JCT MBD-28S Platform transforms any open space into a stadium-grade broadcasting arena. Engineered for high-stakes outdoor spectacles—from live football matches and music festivals to massive commercial roadshows—this open-bed mobile LED platform delivers a colossal 28 m² display wall (7000 mm × 4000 mm) that commands attention across vast crowds and long distances.

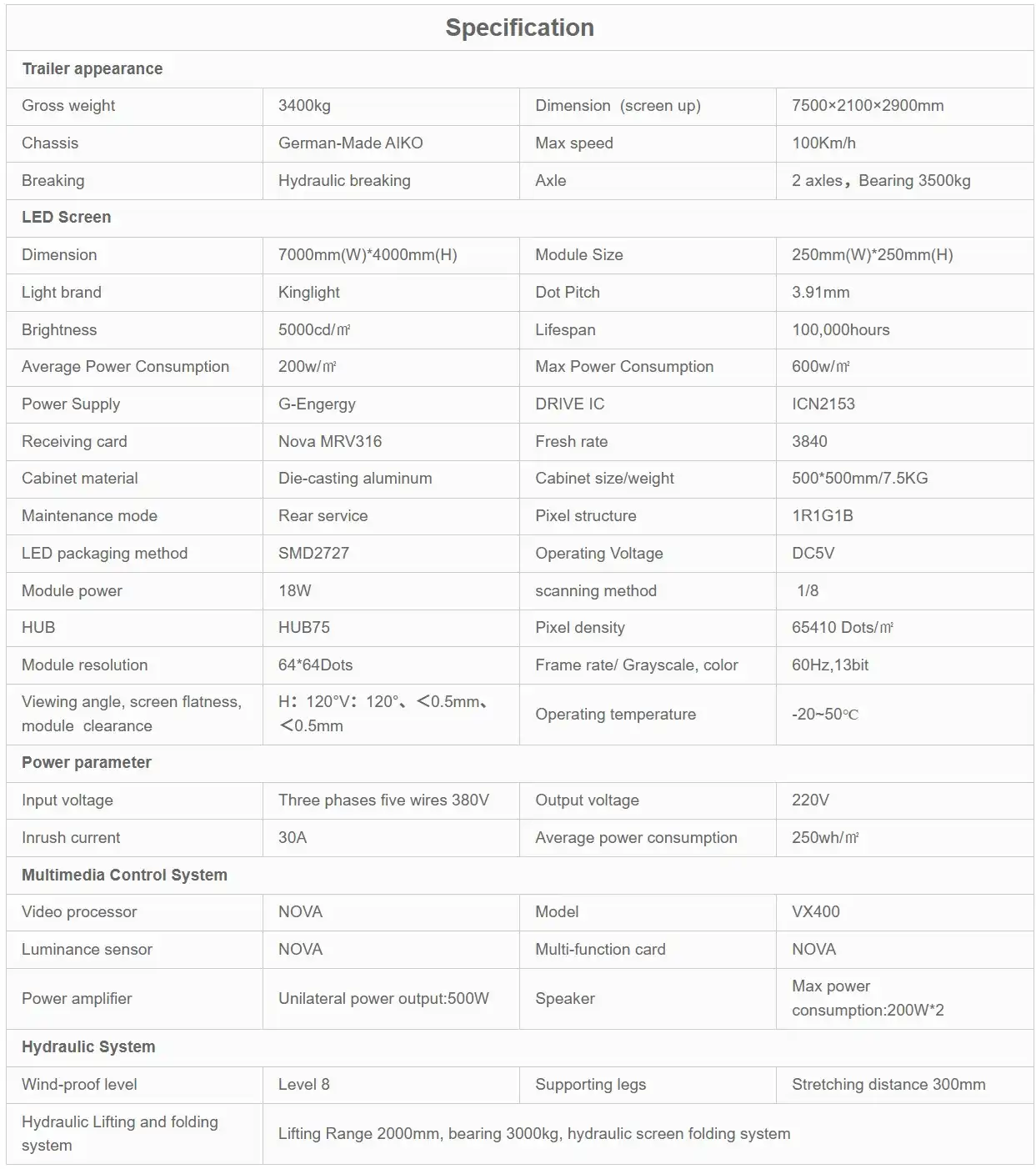

Key Features & Specifications
- Titan-Sized 28 m² Ultra-HD Display Wall:
Outfitted with premium Kinglight SMD2727 LED modules featuring a tight P3.91 pixel pitch, high contrast, a 3840 Hz refresh rate, and 5000 cd/m² daylight-piercing brightness to stream vivid, flicker-free media under direct sunlight. - Hydraulic Folding & 360-Degree Command:
Features an automated, multi-stage hydraulic system that smoothly unfolds side display wings, elevates the main screen up to a 7.5-meter top height, and rotates a full 360 degrees to direct the visual experience toward any audience configuration. - 15-Minute Rapid Field Deployment:
Controlled via an intuitive one-button wireless remote, the entire platform transitions from a compact road-ready trailer into a fully operational broadcasting rig in just 15 minutes, cutting setup labor to a single operator. - German-Certified Heavy-Duty Chassis:
Built on a hot-dip galvanized chassis manufactured to strict DIN EN 13814 and DIN EN 13782 standards. Features a dual-axle AIKO setup (3500 kg mass capacity) rated for highway speeds up to 100 km/h, stabilized on-site by heavy-duty outriggers engineered to withstand Level 8 winds. - Integrated Pro Audio & Broadcast Processing:
Powered by NovaStar media processing (VX400 controller) supporting multi-channel video inputs, drone cameras, and live network feeds, paired with high-output audio amplification to deliver synchronized visual and sound coverage.

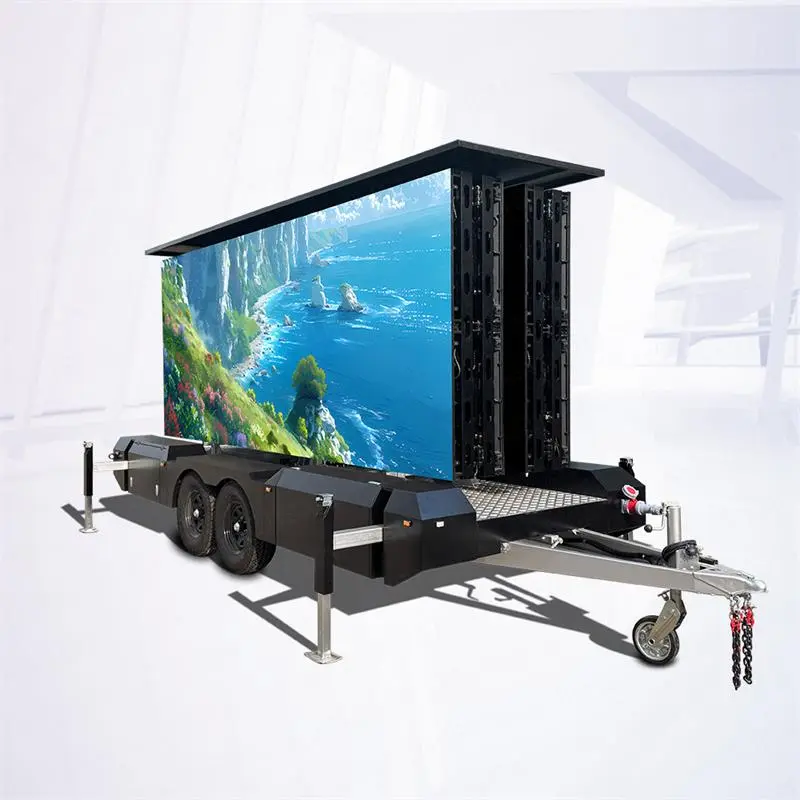

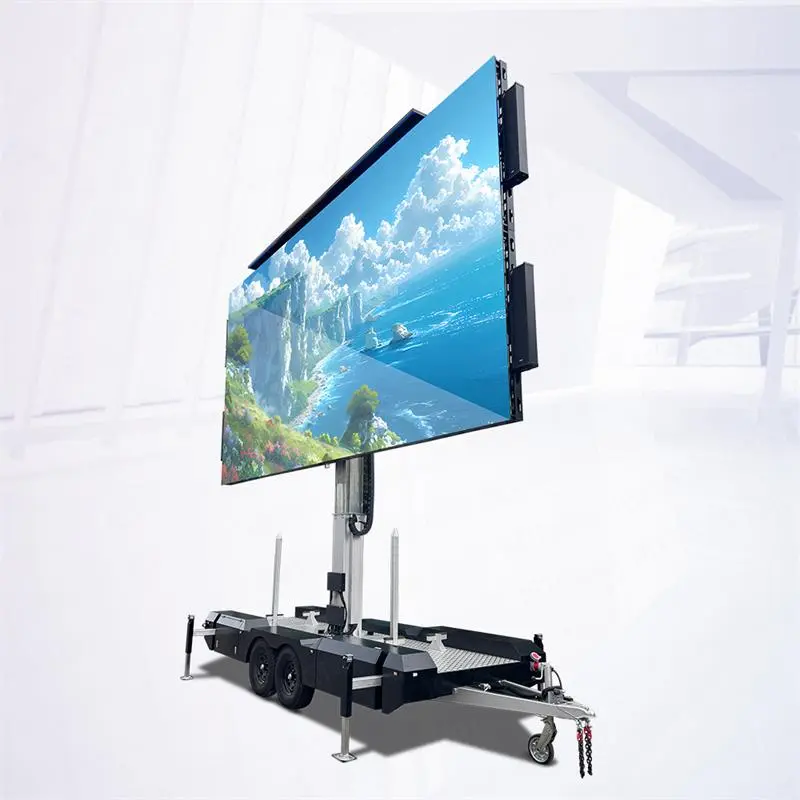

The JCT MBD-32S Platform stands as an absolute colossus in mobile outdoor media, bringing true stadium-scale visual domination directly to any event footprint. Engineered for monumental outdoor gatherings—from mega music festivals and championship sports broadcasts to high-profile brand activations—this open-bed platform unveils a gargantuan 32 m² display wall (8000 mm × 4000 mm) that transforms distant crowds into an captivated audience.

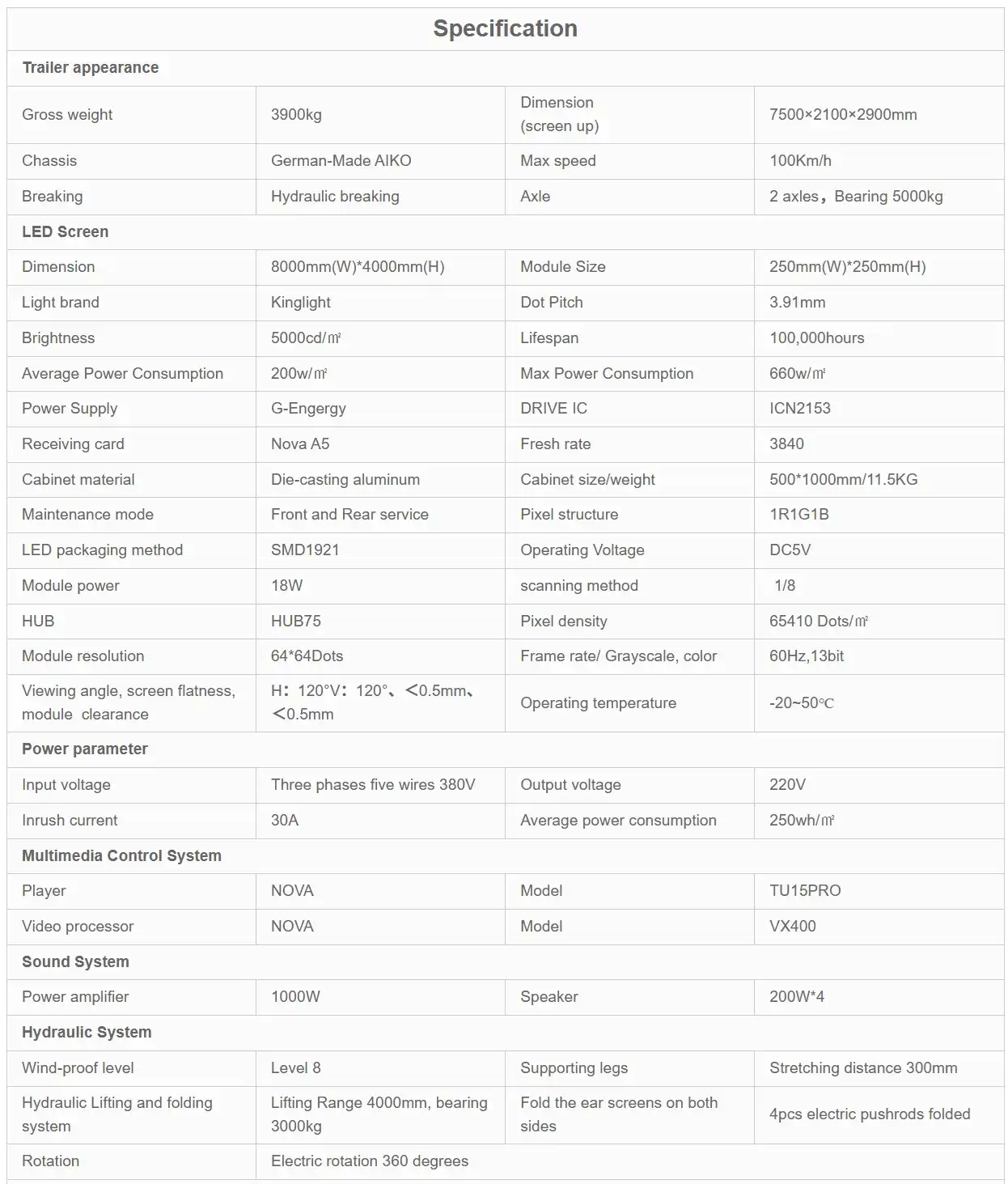

Key Features & Specifications
- Colossal 32 m² High-Definition Display:
Built using lightweight die-cast aluminum cabinets with outdoor Kinglight SMD1921 LEDs in a ultra-sharp P3.91 pixel pitch, generating 5000 cd/m² sunlight-piercing brightness, 3840 Hz high refresh rate, and deep color dynamic range. - Hydraulic Elevation & Electric 360-Degree Rotation:
Driven by a heavy-duty hydraulic lifting system with 4000 mm of stroke travel, taking the top of the display to a towering 7.5 meters off the ground. Features electric 360-degree rotation alongside electric pushrod side-ear folding wings for multi-directional crowd coverage. - Automated Smart Safety & Wind Protection:
Equipped with an onboard real-time wind speed sensor and mobile APP alarm integration that automatically monitors weather safety thresholds, alongside an emergency manual hand-pump setup according to DIN EN 13814 compliance for fail-safe operation without electrical power. - Heavy-Duty German Chassis Architecture:
Constructed on a hot-dip galvanized chassis adhering to DIN EN 13814 and DIN EN 13782 standards. Features a high-capacity German AIKO dual-axle system (5000 kg bearing capacity) equipped with hydraulic braking and four heavy-duty sliding outriggers engineered to anchor the colossal display against severe weather. - Integrated High-Speed Media Control:
Powered by NovaStar receiving card infrastructure (Nova A5) and G-Energy power distribution, ensuring seamless, low-latency live signal routing for drone cameras, mobile broadcasting rigs, and multi-screen video feeds.
