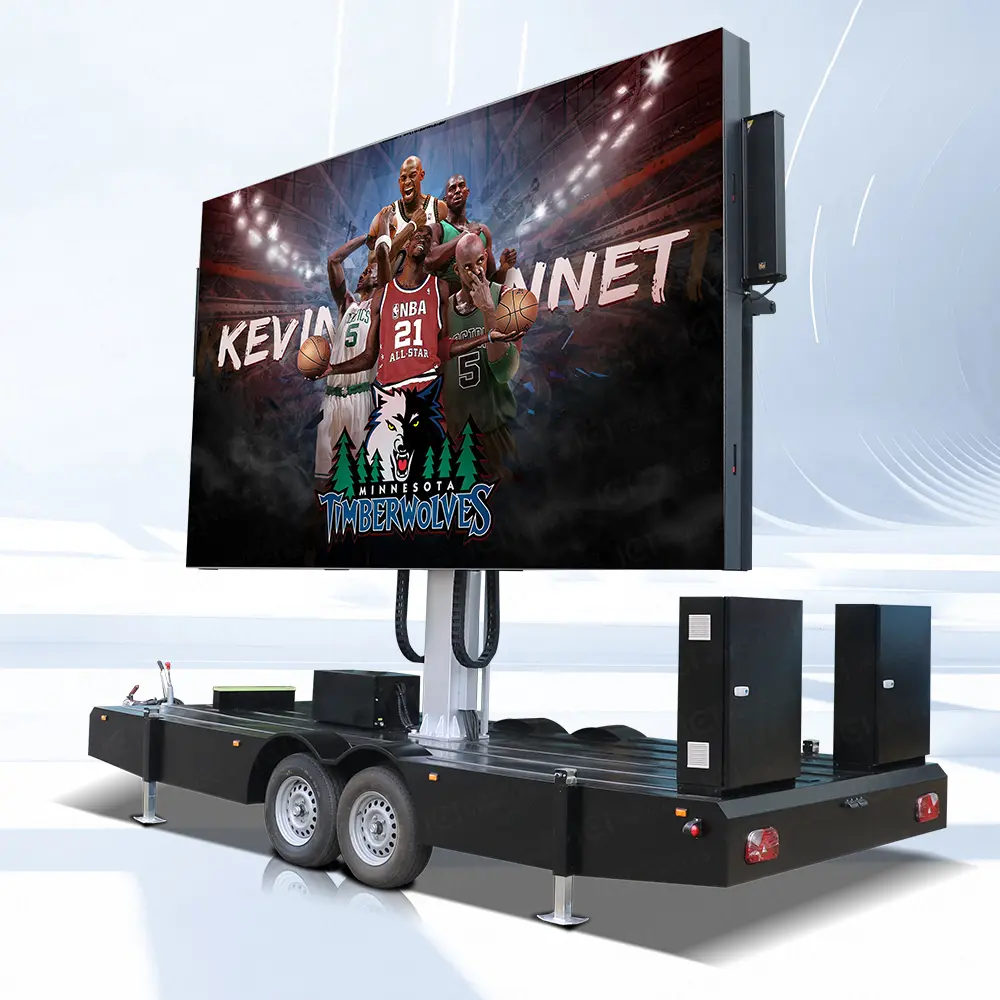

The JCT EF12 is a heavy-duty, large-format mobile LED display trailer built to deliver high-impact broadcasts for live sporting events, commercial pop-up shows, outdoor festivals, and brand campaigns. Featuring a 12 m² outdoor display (4480 mm × 2560 mm), the EF12 combines high-definition visual performance with dual-axle road stability and automated screen folding mechanisms for easy transport.

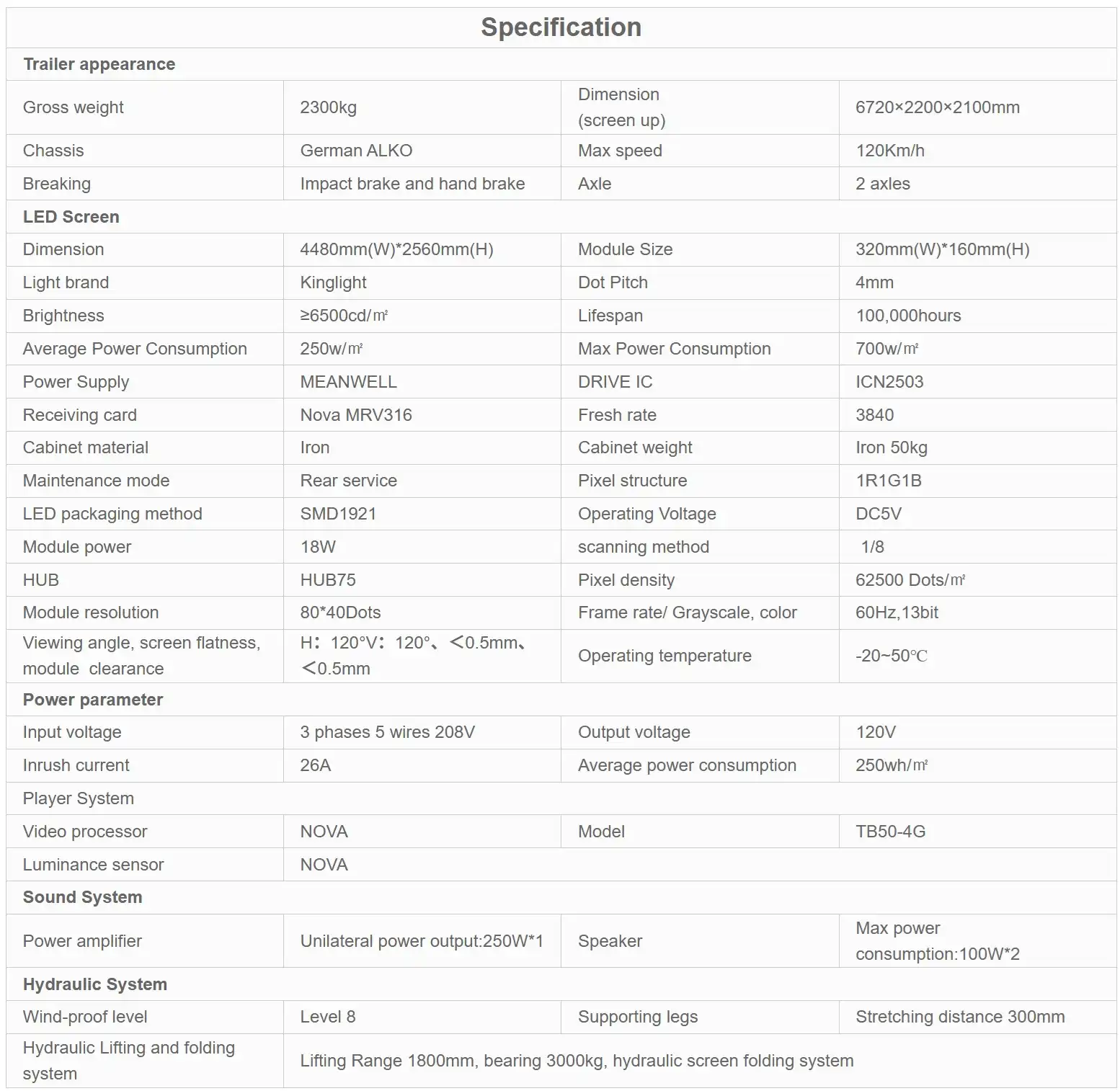

Key Features & Specifications
- Large 12 m² High-Definition Display:
Built with an outdoor full-color screen featuring a P4 pixel pitch (62,500 dots/m²), 6500 cd/m² outdoor brightness, and a 3840 Hz refresh rate for clear, flicker-free video playback in direct sunlight. - Automated Screen Folding & Rotation:

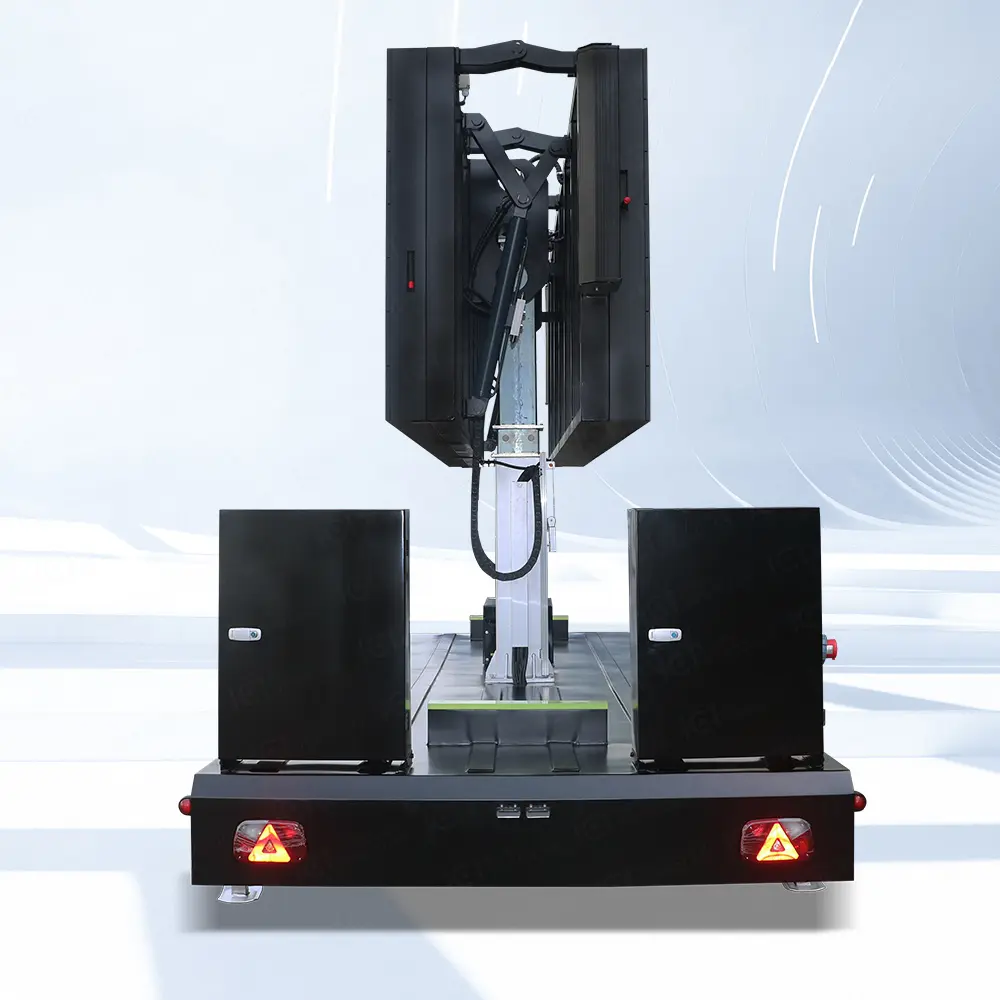

Integrates a hydraulic folding screen mechanism that allows content to display while folding or unfolding, significantly lowering the overall trailer height during transit. Combined with a hydraulic mast offering an 1800 mm lift range and 360-degree rotation for all-around viewing coverage. - Dual-Axle Heavy-Duty Chassis:
Constructed on a reinforced German AL-KO dual-axle chassis (2300 kg total weight) equipped with impact brakes and handbrakes, allowing safe towing at speeds up to 120 km/h. Supported by four heavy-duty outriggers engineered to withstand Level 8 wind conditions. - Modern Frameless Aesthetic:
Features an industrial frameless chassis design with sharp, clean lines tailored for high-end pop-up shows, car launches, and live entertainment venues. - Integrated Multimedia System:
Powered by a NovaStar TB50 player (4G, Wi-Fi, and USB support) paired with an automatic ambient brightness sensor and an upgraded outdoor sound system (250W power amplifier with dual 100W speakers).

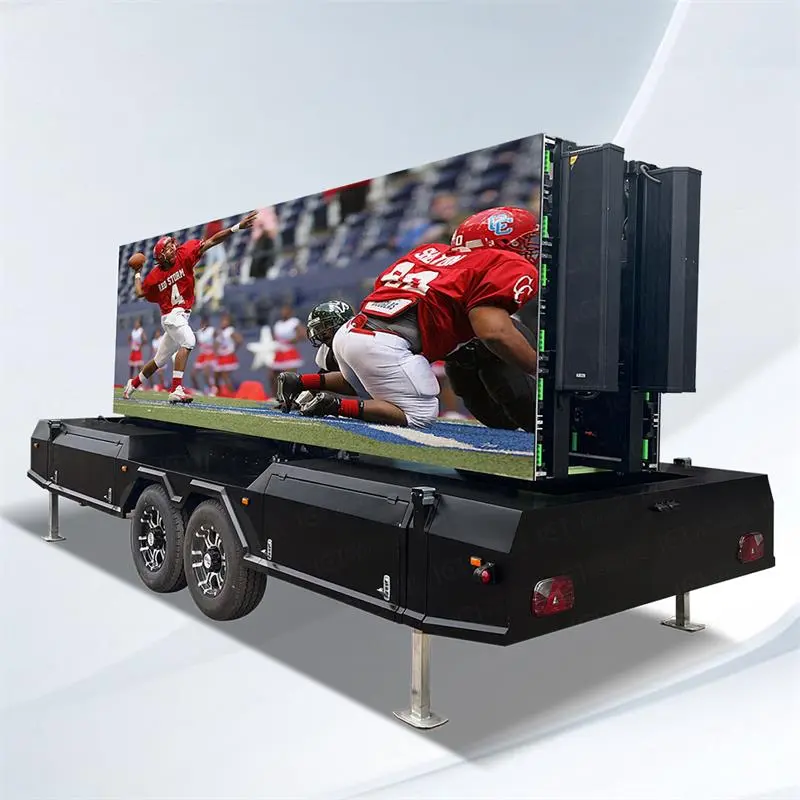

The JCT EF16 is a high-capacity, large-format mobile LED display trailer built specifically for major sporting events, high-profile outdoor festivals, commercial product launches, and stadium-level broadcasts. Delivering an impressive 16 m² display screen (5120 mm × 3200 mm), the EF16 offers massive visual impact while optimizing site footprint compared to larger trailers in its class.

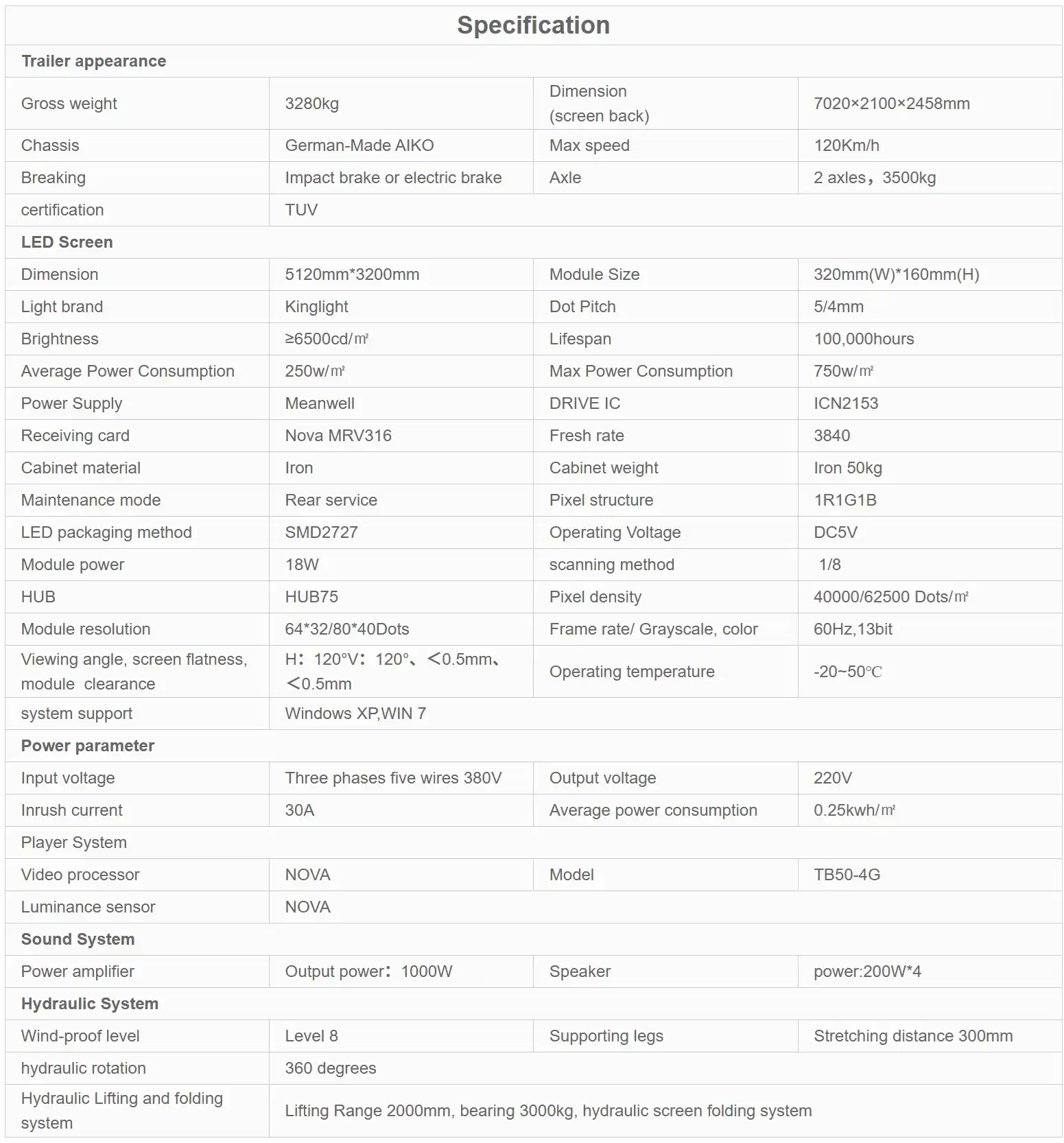

Key Features & Specifications
- Massive 16 m² Outdoor Display:
Features an outdoor full-color LED screen with fine pixel pitch options (P4 or P5), delivering exceptional picture clarity, high contrast, a 3840 Hz refresh rate, and up to 6500 cd/m² brightness for optimal daylight visibility. - Integrated Hydraulic Lifting, Folding, & 360° Rotation:
Equipped with an Italian-imported hydraulic lifting system capable of a 2000 mm vertical stroke and 3000 kg load capacity. Features automated screen folding to reduce transportation height and hydraulic 360-degree rotation for all-around audience targeting. - Reinforced German Dual-Axle Chassis:
Built on a heavy-duty TUV-certified German dual-axle chassis (3500 kg axle rating) designed for high-speed highway towing up to 120 km/h. Supported by four heavy-duty outriggers engineered to withstand Level 8 wind speeds. - High-Output Stadium Audio System:
Integrates a high-power sound station including a 1000W power amplifier and four 200W outdoor speakers, providing crisp, stadium-filling sound for live commentary and video audio. - Smart Media Control & Brightness Management:
Powered by a NovaStar TB50 multimedia processor (4G, Wi-Fi, and USB support) with automated timing switches and an ambient light sensor that adjusts screen brightness in real time to prevent light pollution and conserve power.
