ELX POWERED SERIES
ELX112P
12" powered loudspeaker
- ELX112 performance with self-amplification
- 50 Hz – 20 kHz frequency range
- Lightweight, cool-running 1000 W Class D amp
- Biamped with 24 dB/octave crossover
- Transducer protection
- Bypassable high-pass for external subwoofer
- XLR, TRS, and RCA connections
- Versatile gain, mixing, and processing controls
- Pre- or post-mix parallel outputs
The ELX112P is a compact, powerful and versatile choice for sound reinforcement and stage monitoring applications — lightweight and durable, with a 1000 W amp.
Specifications
| Freq. Response (-3 dB) | 60 Hz - 18 kHz1 |
| Freq. Range (-10 dB) | 50 Hz - 20 kHz1 |
| Max. Measured SPL3 | 132 dB |
|
MoreSpecifications |
|
| Coverage (Horiz. x Vert.) | 90° x 50° |
| Power Rating | 1000W |
| LF Transducer | (1) EVS-12K, 305mm (12") Woofer |
| HF Transducer | DH-1K, 39mm (1.5") Titanium Diaphragm Compression Driver |
| Crossover Frequency | 1.7 kHz |
| Connectors | (2) XLR/TRS Combo Jacks, (1) Stereo RCA (1) XLR Link Output |
| Enclosure Material | 9-ply, 15mm Plywood, Internally Braced, with Texured Paint |
| Grille | 18GA Steel with Black Powdercoat |
| Dimensions (H x W x D) | 607mm x 362mm x 340mm (23.89" x 14.25" x 13.41") |
| Net Weight | 16.8 kg (36.9 lbs) |
| Shipping Weight | 20.7 kg (45.5 lbs) |
| Accessories | TSS-1, Aluminum Tripod Stand TSP-1, Tripod Kit, Includes (2) Tripod Stands and Carrying Case ASP-1, Steel Subwoofer Stand |
ELX115P
15" powered loudspeaker
- ELX115 performance with self-amplification
- 44 Hz – 20 kHz frequency range
- Lightweight, cool-running 1000 W Class D amp
- Biamped with 24 dB/octave crossover
- Transducer protection
- Bypassable high-pass for external subwoofer
- XLR, TRS, and RCA input connections
- Versatile gain, mixing, and processing controls
- Pre- or post-mix parallel outputs
A powerful step up from the ELX112P, the 15” woofer and 1000 W amplifier in the ELX115P deliver extended lower frequencies and room-filling volume.
Specifications
| Freq. Response (-3 dB) | 56 Hz - 18 kHz1 |
| Freq. Range (-10 dB) | 44 Hz - 20 kHz1 |
| Max. Measured SPL3 | 134 dB |
|
More Specifications |
|
| Coverage (Horiz. x Vert.) | 90° x 50° |
| Power Rating | 1000W |
| LF Transducer | (1) EVS-15K, 381mm (15") Woofer |
| HF Transducer | DH-1K, 39mm (1.5") Titanium Diaphragm Compression Driver |
| Crossover Frequency | 1.7 kHz |
| Connectors | (2) XLR/TRS Combo Jacks (1) Stereo RCA, (1) XLR Link Output |
| Enclosure Material | 9-ply, 15mm Plywood, Internally Braced, with Texured Paint |
| Grille | 18GA Steel with Black Powdercoat |
| Dimensions (H x W x D) | 708mm x 432mm x 382mm (27.89" x 17.02" x 15.05") |
| Net Weight | 22.5 kg (49.5 lbs) |
| Shipping Weight | 27.2 kg (59.8 lbs) |
| Accessories | TSS-1, Aluminum Tripod Stand TSP-1, Tripod Kit, Includes (2) Tripod Stands and Carrying Case ASP-1, Steel Subwoofer Stand |

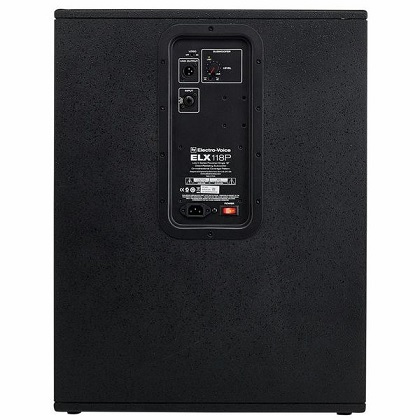

ELX118P
18" powered subwoofer
- ELX118 performance with self-amplification
- EVS-18K woofer for extended LF
- 32 Hz – 130 Hz frequency range
- Lightweight, cool-running 700 W Class D amp
- Selectable Normal/Boost modes
- XLR and TRS combo input
- XLR parallel output
Optimized for performance with the ELX112P and ELX115P, the ELX118P adds a deep, low-frequency, amplified punch that you can hear and feel.
Specifications
| Freq. Response (-3 dB) | 42 Hz - 100 Hz2 |
| Freq. Range (-10 dB) | 32 Hz - 130 Hz2 |
| Max. Measured SPL3 | 134 dB |
|
More Specifications |
|
| Coverage (Horiz. x Vert.) | Omnidirectional |
| Power Rating | 700W |
| LF Transducer | (1) EVS-18K, 457mm (18") Woofer |
| HF Transducer | N/A |
| Crossover Frequency | 100 Hz |
| Connectors | (1) XLR/TRS Combo Jack, (1) XLR Link Output |
| Enclosure Material | 9-ply, 15mm Plywood, Internally Braced, with Texured Paint |
| Grille | 18GA Steel with Black Powdercoat |
| Dimensions (H x W x D) | 661mm x 507mm x 574mm (26.02" x 19.98" x 22.60") |
| Net Weight | 31.3 kg (68.9 lbs) |
| Shipping Weight | 38.0 kg (83.6 lbs) |
| Accessories | ASP-1, Steel Subwoofer Stand |
